The choice between a bandpass filter (BPF) and a low-pass filter (LPF) depends on the specific requirements of your signal processing application. Neither is universally "better"—each serves different purposes. Here’s a comparison to help you decide:

1. Purpose & Frequency Response

Low-Pass Filter (LPF):

Allows frequencies below a cutoff frequency (fc) to pass while attenuating higher frequencies.

Used to remove high-frequency noise, smooth signals, or prevent aliasing in ADC systems.

Example applications: Audio bass enhancement, anti-aliasing in data acquisition, DC restoration.

Bandpass Filter (BPF):

Allows a specific range of frequencies (between a lower fc1 and upper fc2) to pass while blocking frequencies outside this range.

Used to isolate a signal of interest in a noisy environment or extract a modulated carrier frequency.

Example applications: RF communication (e.g., AM/FM radio tuning), EEG/ECG signal extraction, vibration analysis.

2. When to Use Which?

Use an LPF if:

You only care about low-frequency components (e.g., removing high-frequency noise).

Your signal is baseband (centered around 0 Hz).

You need simpler design & lower computational cost (fewer components than BPF).

Use a BPF if:

Your signal lies in a specific frequency band (e.g., a radio channel or sensor signal).

You need to reject both low and high-frequency interference (e.g., 50/60 Hz power line noise + RF noise).

You’re working with modulated signals (e.g., filtering an AM/FM band).

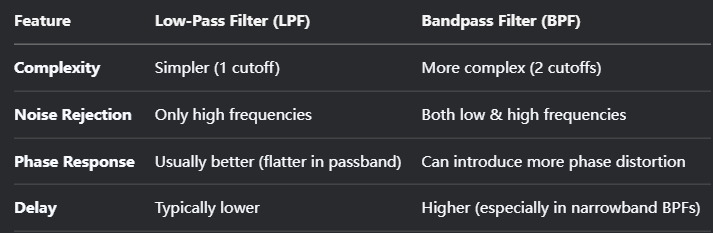

3. Trade-offs

4. Practical Example

LPF: In an ECG signal, an LPF (e.g., 150 Hz cutoff) removes muscle noise and RF interference.

BPF: In a wireless receiver, a BPF (e.g., 88–108 MHz for FM radio) isolates the desired station while rejecting others.

Conclusion

Choose LPF for general-purpose noise removal and DC/low-frequency signal extraction.

Choose BPF when you need to isolate a specific frequency band or reject out-of-band interference.

If your signal has both requirements (e.g., needing to pass low frequencies but also block very low-frequency drift), a combination of HPF + LPF (making a BPF) might be optimal.
