Bandpass filters (BPFs) are essential in signal processing and electronics, offering several advantages in various applications. Here are the key benefits:

1. Selective Frequency Isolation

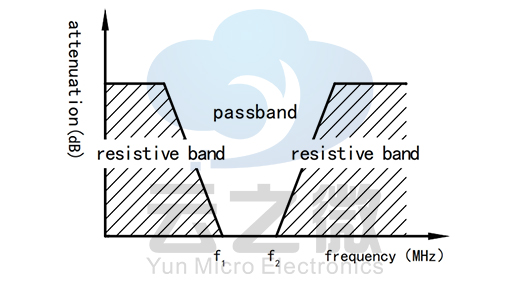

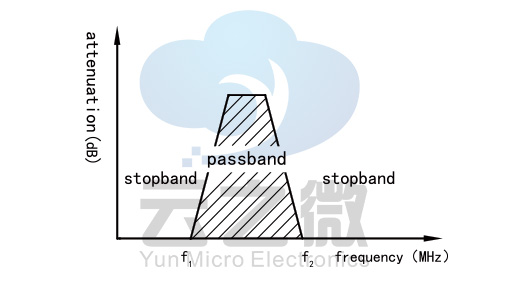

• BPFs allow only a specific range of frequencies (the passband) to pass while attenuating frequencies outside this range (low and high frequencies).
• Useful for extracting desired signals from noise or interference.

2. Noise Reduction

• By blocking unwanted frequencies (both low and high), BPFs improve signal-to-noise ratio (SNR).
• Commonly used in communication systems (e.g., radio receivers) to isolate a particular channel.

3. Signal Clarity & Precision

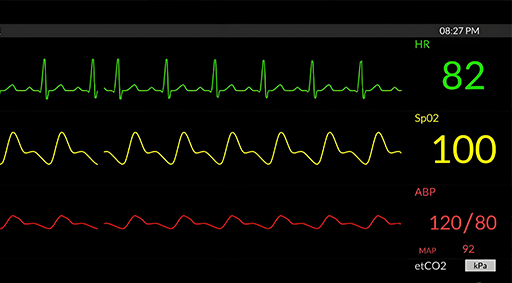

• Enhances signal quality in audio processing, biomedical applications (e.g., EEG/ECG), and sensor data analysis.
• Removes DC offsets and high-frequency interference.

4. Flexibility in Design

• Can be implemented in analog (LC, RC, op-amp circuits) or digital (DSP algorithms) forms.
• Adjustable center frequency and bandwidth to suit different needs.

5. Prevents Aliasing in Sampling Systems

• In analog-to-digital conversion (ADC), BPFs can restrict input signals to the relevant frequency range, preventing aliasing.

6. Used in Modulation & Demodulation

• Essential in RF and wireless communications for selecting specific carrier frequencies.
• Helps in separating different channels in frequency-division multiplexing (FDM).

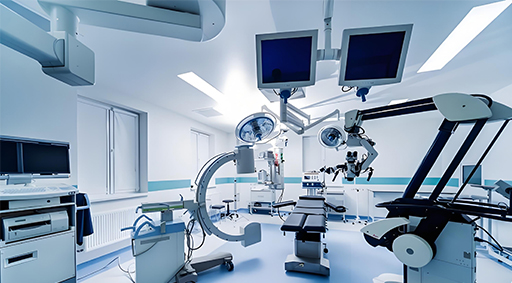

7. Biomedical & Scientific Applications

• Filters out artifacts in medical devices (e.g., removing 50/60 Hz power line interference from ECG signals).
• Used in spectroscopy and vibration analysis to focus on specific frequency components.

8. Improved System Performance

• Reduces interference in radar, sonar, and optical systems.
• Enhances audio quality in speaker systems by isolating mid-range frequencies

Types & Their Advantages

• Active BPF (Opamp based): High precision, amplification, and tunability.
• Passive BPF (LC/RC): No power needed, simple design.
• Digital BPF (FIR/IIR): Programmable, no component drift.

Disadvantages to Consider：

• Phase distortion near cutoff frequencies.
• Design complexity for very narrow or very wide bandwidths.

Conclusion：

Bandpass filters are crucial for isolating frequency bands, improving signal integrity, and reducing noise in electronics, communications, and scientific instruments. Their adaptability makes them indispensable in many technical fields.
