RF (Radio Frequency) filters are essential components in wireless communication systems, used to selectively pass or reject specific frequency ranges. They can be categorized based on frequency response, implementation technology, and application. Here are the main types:

1. Based on Frequency Response

These define how the filter behaves in terms of frequency selection:

• Low-Pass Filter (LPF) - Allows frequencies below a cutoff frequency (f₀) to pass while attenuating higher frequencies.
• High-Pass Filter (HPF) - Allows frequencies above a cutoff frequency (f₀) to pass while attenuating lower frequencies.
• Band-Pass Filter (BPF) - Passes frequencies within a specific range (f₁ to f₂) and attenuates frequencies outside this band.
• Band-Stop Filter (BSF) / Notch Filter – Blocks a specific frequency range (f₁ to f₂) while allowing others to pass.
• All-Pass Filter - Passes all frequencies but introduces a phase shift without attenuation.

2. Based on Implementation Technology

• Different technologies are used to construct RF filters, each with unique characteristics:
• LC Filters - Use inductors (L) and capacitors (C); simple but bulky at lower frequencies.
• SAW Filters (Surface Acoustic Wave) - Use piezoelectric materials for high-frequency applications (MHz-GHz range).
• BAW Filters (Bulk Acoustic Wave) - Similar to SAW but operate at higher frequencies with better power handling (used in 5G).
• Ceramic Filters - Use ceramic resonators for compact, stable performance in wireless systems.
• Cavity Filters - Use waveguide cavities for high-power applications (e.g., base stations, radar).
• MMIC Filters (Monolithic Microwave ICs) - Integrated into semiconductor chips for compact RF systems.
• Dielectric Resonator Filters - Use high-permittivity materials for high-Q factor performance.

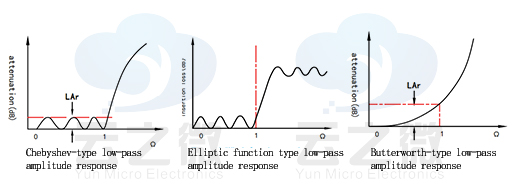

3. Based on Response Characteristics

• Butterworth Filter - Maximally flat passband, moderate roll-off.
• Chebyshev Filter - Steeper roll-off but has ripple in passband/stopband.
• Elliptic (Cauer) Filter - Sharpest transition but ripple in both passband and stopband.
• Bessel Filter - Preserves phase but has slower roll-off.

4. Based on Tuning Mechanism

• Fixed Filters - Designed for a specific frequency range (non-adjustable).
• Tunable Filters - Can adjust center frequency or bandwidth dynamically (used in software-defined radios).

Applications of RF Filters

• Wireless Communication (5G, Wi-Fi, LTE) - Band selection and interference rejection.
• Radar & Satellite Systems - Signal isolation and noise reduction.
• Medical Devices (MRI, RF Ablation) - Frequency control for safety.
• Defense & Aerospace - Secure and reliable signal transmission.
