LTCC Band Pass Filter 11590-12590MHz BPLT12090-1000-5


LTCC
LTCC

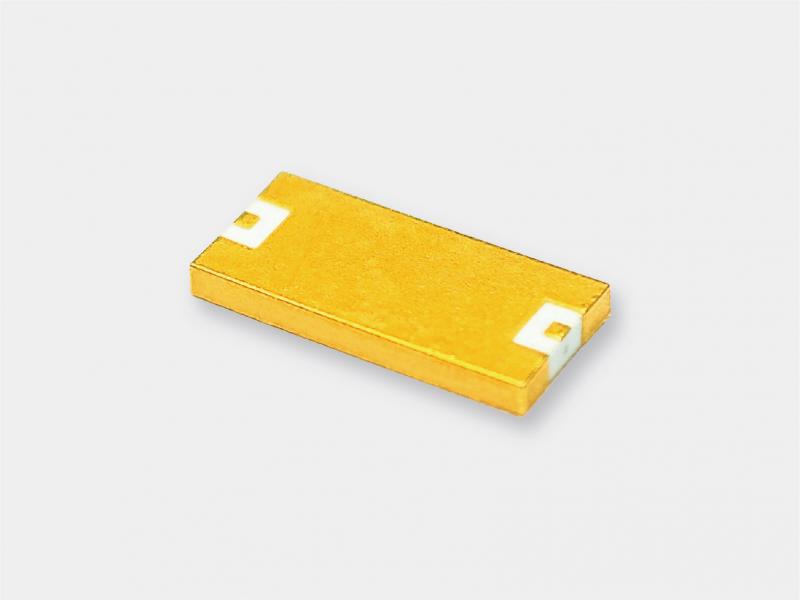

LTCC Band Pass Filter 11590-12590MHz BPLT12090-1000-5

Features:

- Small Volume

- High Rejection

- Short Delivery Time

- Custom Design Available

  • Brand:

    Yun Micro Electronics Ltd

  • Item NO.:

    BPLT12090-1000-5

  • Order(MOQ):

    1

  • Product Origin:

    Hefei, Anhui, China

  • Shipping Port:

    Shanghai/Shenzhen

  • Lead Time：

    5 weeks
Inquiry now
F0(MHz)：12090
IL(F0)：≤3.0
BW (-1dB)：≥1000
VSWR：≤1.8
Stopband：≥40dB@10400MHz ; ≥30dB@13400MHz
Dimension (mm)：10*5*1.1
