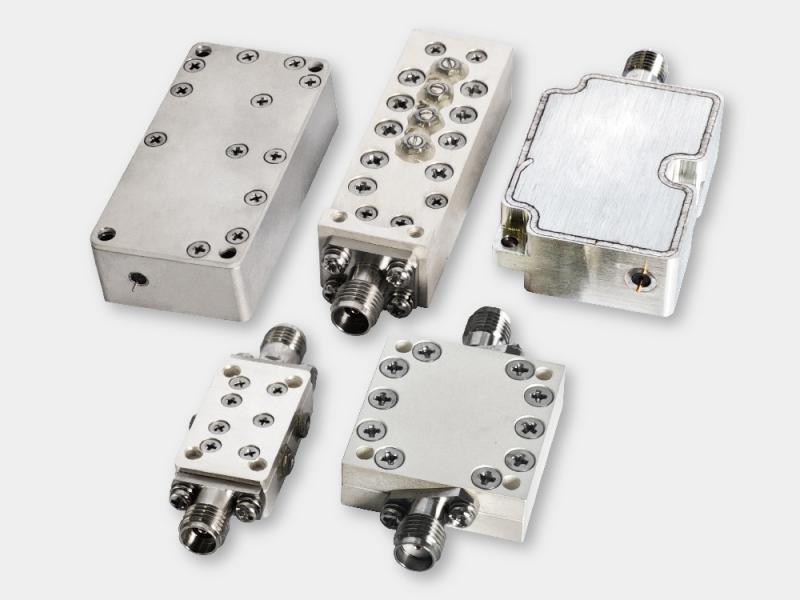

Small Size Band Pass Cavity Filters

Features:

- Small Volume

- High Rejection

- Low Insertion Loss

- Short Delivery Time

- Custom Design Available

  • Brand:

    Yun Micro Electronics Ltd
  • Order(MOQ):

    1
  • Product Origin:

    Hefei, Anhui, China
  • Shipping Port:

    Shanghai/Shenzhen
  • Lead Time:

    5 weeks

Description

A Customized Cavity Filter is a highly adaptable RF (Radio Frequency) and microwave filter designed to meet the unique signal processing needs of customers. These filters utilize the principles of cavity resonance, allowing precise selective filtering of signals within specific frequency ranges by selecting appropriate materials, dimensions, and construction parameters.


Such kind of filter is customized by Yun Micro as the definition. As RF filter company, more high frequency fitler can be ODM by Yun Micro as well. Do as promise, all the RF passive components from Yun Micro have 1 year warranty.


Parameter

Small Size (B2,B3 and B4 )

Available in 3-13 sections
Cover frequency range 4GHz to 40GHz
Size:Length 20-40mm,Width 12-15mm,High 5-7mm
Custom RF Passive Components
As a manufacturer of RF passive components, Yun Micro can design various ones according to the clients’ applications.
Only 3 Steps to Solve Your Problem of RF Passive Component
1.Defining the parameter by you.
2.Offering the proposal for confirmation by Yun Micro.

3.Yun Micro completes customized production.




Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
