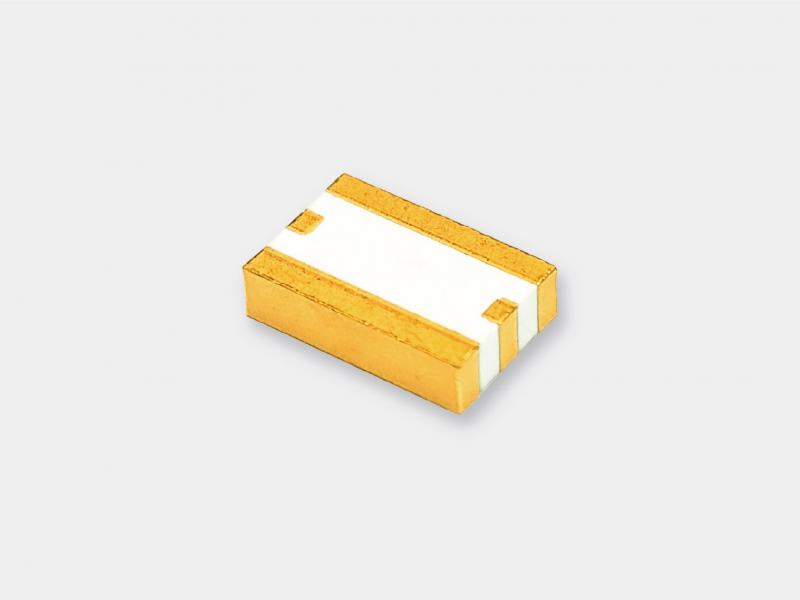

LTCC Band Pass Filter 2750-3250MHz LTB3000-500-P6D1


LTCC
LTCC

LTCC Band Pass Filter 2750-3250MHz LTB3000-500-P6D1

Features:

- Small Volume

- High Rejection

- Short Delivery Time

- Custom Design Available

  • Item NO.:

    LTB3000-500-P6D1

  • Order(MOQ):

    1

  • Product Origin:

    Hefei, Anhui, China

  • Shipping Port:

    Shanghai/Shenzhen

  • Lead Time：

    5 weeks
Inquiry now

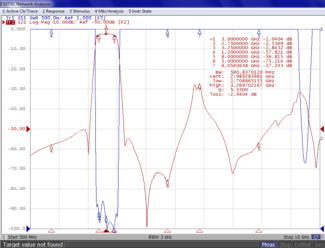

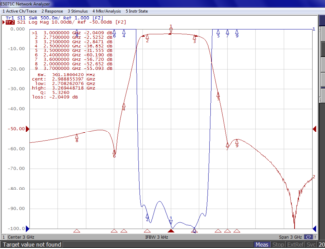

F0(MHz)：3000
IL(F0)：≤2.5
BW (-1.5dB)：≥500M
VSWR：≤2
Stopband：≥35dB@2400M;≥30dB@3600M

Dimension (mm)：6.5*4.2*1.5
