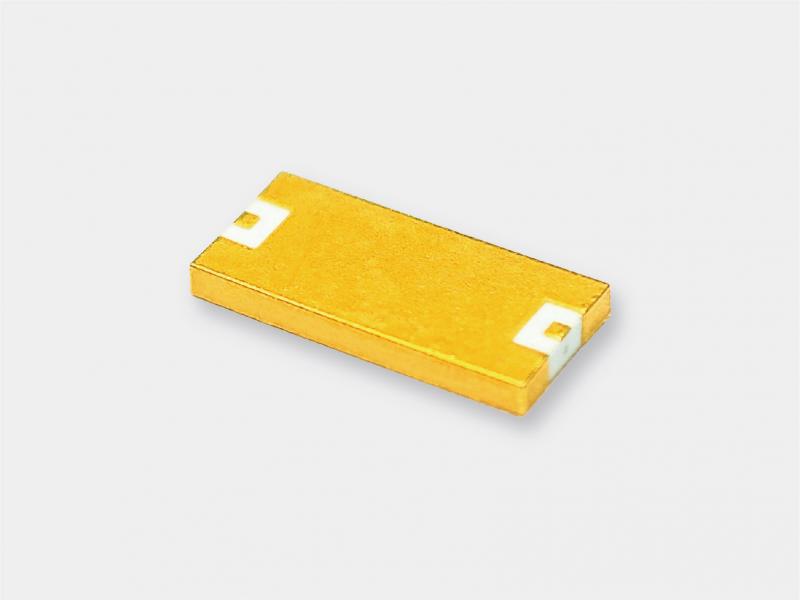

LTCC Band Pass Filter 4725-5025MHz BPLT4875-300-7


LTCC
LTCC

LTCC Band Pass Filter 4725-5025MHz BPLT4875-300-7

Features:

- Small Volume

- High Rejection

- Short Delivery Time

- Custom Design Available

  • Brand:

    Yun Micro Electronics Ltd

  • Item NO.:

    BPLT4875-300-7

  • Order(MOQ):

    1

  • Product Origin:

    Hefei, Anhui, China

  • Shipping Port:

    Shanghai/Shenzhen

  • Lead Time：

    5 weeks
Inquiry now

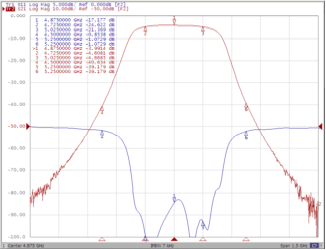

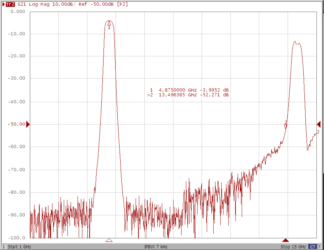

截止频率(MHz)：4875
插入损耗(F0)：≤4.0
通带带宽(-1dB)：≥300
带内驻波比：≤1.8
阻带：≥30dB@4500MHz ; ≥30dB@5250MHz

尺寸 (mm)：10.8*6.4*1.1

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
