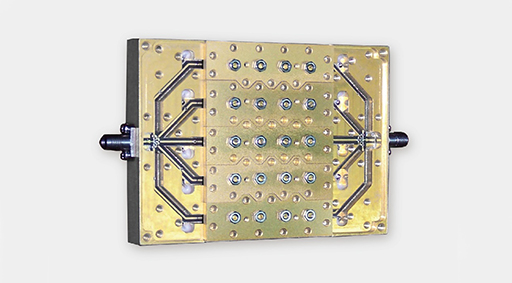

A Switched Filter Bank is a programmable module that integrates multiple filters (e.g., bandpass, low-pass, high-pass) with electronic switches. It enables rapid switching between different filter paths via external control signals, achieving dynamic frequency selection.

Usage Method:

1. Control Command: Send digital signals (e.g., TTL, GPIO, SPI) to the control interface to activate the target filter path within the switch matrix.
2. Signal Routing: The RF signal enters/exits through a common port, with only the selected filter path active while others remain highly isolated.
3. Dynamic Configuration: Adapt filtering characteristics in real-time based on system needs (e.g., frequency band switching, interference avoidance), replacing multiple discrete filters.

Typical Applications:

• Spectrum Analyzers: Automatically switch preselection filters to match scanning frequency bands.
• Multi-standard Base Stations: Dynamically adapt to process signals in different bands (e.g., 5G, 4G).
• Lab Test Systems: Enable automated multi-frequency testing to improve efficiency.
• Cognitive Radio: Intelligently select passbands based on spectrum sensing results.

Yun Micro, as the professional manufacturer of rf passive components, can offer the cavity filters up 40GHz,which include band pass filter, low pass filter, high pass filter, band stop filter.
