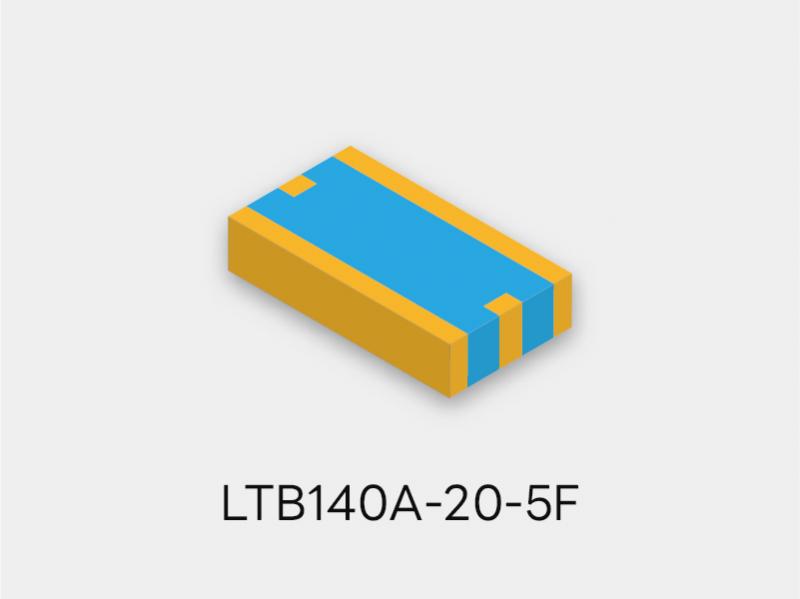

LTCC Microwave Bandpass Filter LTB140A-20-5F for Passband Range 130-150MHz

Product Overview

The LTB140A-20-5F is a compact LTCC bandpass filter engineered for 130-150 MHz RF and microwave scenarios, combining high rejection, rapid availability, and flexible customization.

Suitable for wireless communication systems, RF modules, base station systems, and other high-frequency applications.

Typical Characteristics

Features

• Small Volume & Compact Design: With ultra-compact dimensions of just 9*5*1.9 mm, it is highly suitable for space-constrained PCB layouts and miniaturized RF modules.
• High Rejection Performance: Delivers superior stopband attenuation of ≥20dB at 110MHz and ≥15dB at 170MHz, effectively minimizing signal interference.
• Short Delivery Time: As a direct manufacturer, we ensure optimized inventory and production schedules to meet your urgent project timelines.
• Custom Design Available: We specialize in standard and custom-design components, allowing us to tailor filter specifications to your exact system requirements.

Applications

• RF Front-End Modules
• Microwave Communication Equipment
• Wireless Base Stations
• Test and Measurement Equipment

FAQ

Q1: What is the frequency range of this LTCC band pass filter?
A: The LTB140A-20-5F LTCC band pass filter operates from 130MHz to 150MHz, with a center frequency of 140MHz and a bandwidth of 20MHz. It is designed for high-frequency RF and microwave applications requiring precise signal filtering.
Q2: Can this 140MHz LTCC band pass filter be customized for different frequency requirements?
A: Yes. We provide customized LTCC band pass filter solutions based on customer requirements, including center frequency, bandwidth, insertion loss, package size, and electrical performance specifications. Our engineering team can support prototype development and volume production for different RF applications.
Q3: What applications can use the LTB140A-20-5F RF band pass filter?
A: LTB140A-20-5F is suitable for various RF and microwave systems, including wireless communication equipment, RF front-end modules, and microwave testing equipment. Its compact LTCC package and high rejection performance make it suitable for space-limited high-frequency designs.
