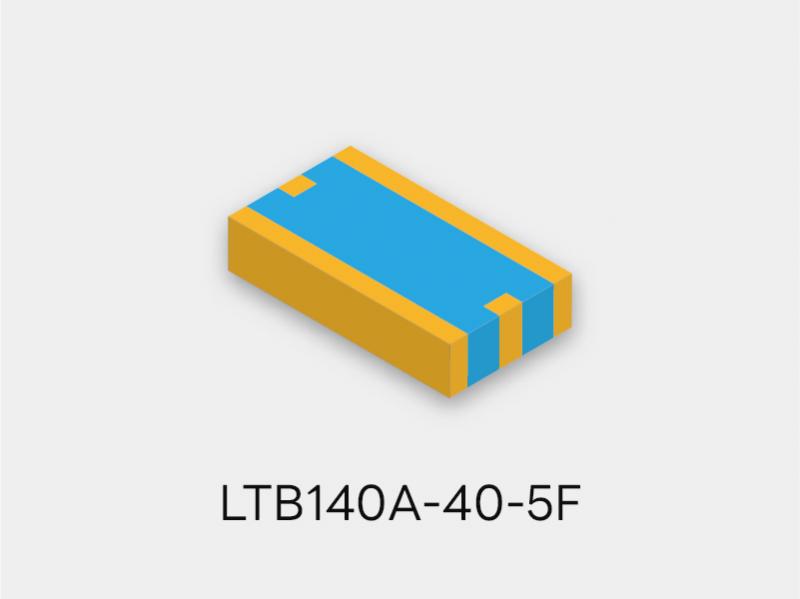

LTCC Microwave Bandpass Filter LTB140A-40-5F for Passband Range 120-160MHz

Product Overview

Built on LTCC technology, the compact LTB140A-40-5F operates in the 120-160MHz band, delivering high rejection, fast delivery, and customizable design to meet varied high-frequency filtering requirements.

Suitable for wireless communication systems, RF modules, base station systems, and other high-frequency applications.

Specifications

Typical Characteristics

Features

• Small Volume & Compact Design: With ultra-compact dimensions of just 9*5*1.9 mm, it is highly suitable for space-constrained PCB layouts and miniaturized RF modules.
• High Rejection Performance: Delivers superior stopband attenuation of ≥30dB at 90MHz and ≥30dB at 190MHz, effectively minimizing signal interference.
• Short Delivery Time: As a direct manufacturer, we ensure optimized inventory and production schedules to meet your urgent project timelines.
• Custom Design Available: We specialize in standard and custom-design components, allowing us to tailor filter specifications to your exact system requirements.

Applications

• RF Front-End Modules
• Microwave Communication Equipment
• Wireless Base Stations
• Test and Measurement Equipment

FAQ

Q1: What is the frequency range of this LTCC band pass filter?
A: The LTB140A-40-5F  LTCC band pass filter operates from 120MHz to 160MHz, with a center frequency of 140MHz and a bandwidth of 40MHz. It is designed for high-frequency RF and microwave applications requiring precise signal filtering.
Q2: Can this 140MHz LTCC band pass filter be customized for different frequency requirements?
A: Yes. We provide customized LTCC band pass filter solutions based on customer requirements, including center frequency, bandwidth, insertion loss, package size, and electrical performance specifications. Our engineering team can support prototype development and volume production for different RF applications.
Q3: What applications can use the  LTB140A-40-5F  RF band pass filter?
A: The LTB140A-40-5F is suitable for various RF and microwave systems, including wireless communication equipment, RF front-end modules, and microwave testing equipment. Its compact LTCC package and high rejection performance make it suitable for space-limited high-frequency designs.
