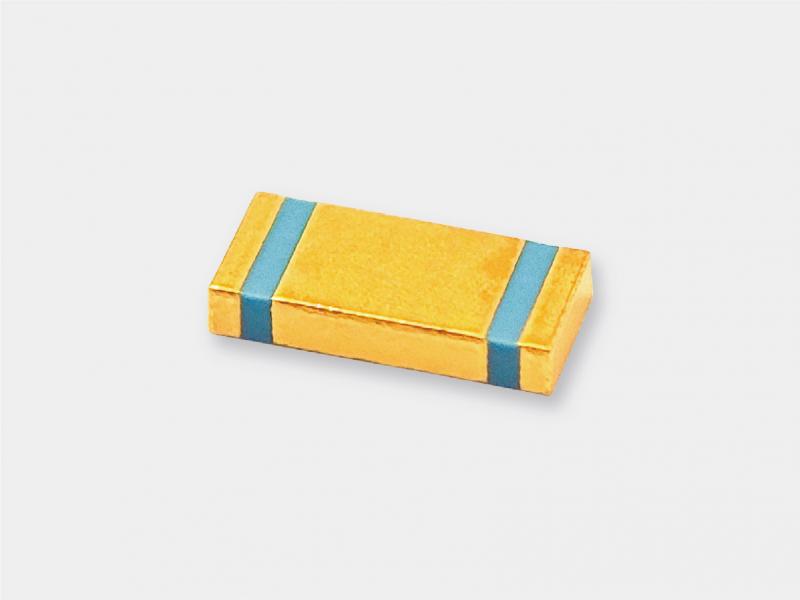

LTCC Band Pass Filter 580-890MHz LTB735-310-P6A

Features:

- Small Volume

- High Rejection

- Short Delivery Time

- Custom Design Available

Brand:
Yun Micro Electronics Ltd
Item NO.:
LTB735-310-P6A
Order(MOQ):
1
Product Origin:
Hefei, Anhui, China
Shipping Port:
Shanghai/Shenzhen
Lead Time：
5 weeks

Inquiry now

Product Detail

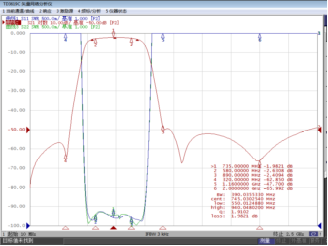

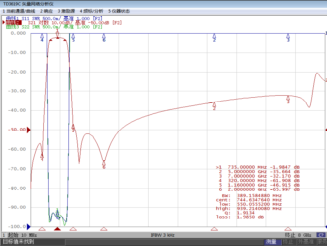

F0(MHz)：735
IL(F0)：≤2.5
BW (-1dB)：≥310M
VSWR：≤2
Stopband：≥30dB@320M;≥35dB@1160M

Dimension (mm)：5.3*2*0.9

Related Tags :

LTCC
LTCC Filter
RF Filter

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : LTCC Band Pass Filter 580-890MHz LTB735-310-P6A
