LTCC Band Pass Filter 9685-10405MHz BPLT10045-720-5


LTCC
LTCC

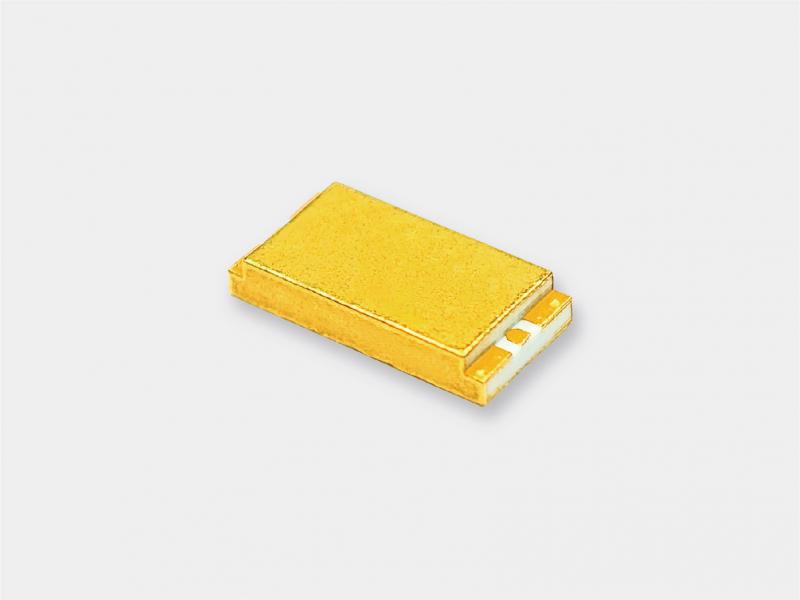

LTCC Band Pass Filter 9685-10405MHz BPLT10045-720-5

Features:

- Small Volume

- High Rejection

- Short Delivery Time

- Custom Design Available

  • Brand:

    Yun Micro Electronics Ltd

  • Item NO.:

    BPLT10045-720-5

  • Product Origin:

    Hefei, Anhui, China

  • Shipping Port:

    Shanghai/Shenzhen

  • Lead Time：

    5 weeks
Inquiry now

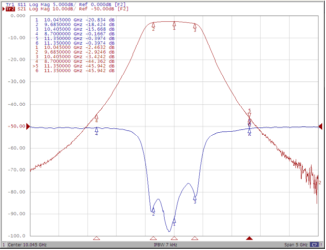

F0(MHz)：10045
IL(F0)：≤2.8
BW (-1dB)：≥720
VSWR：≤1.8

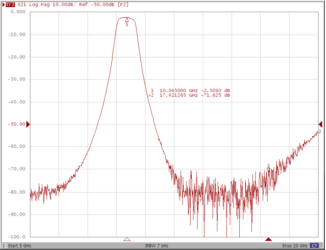

Stopband：≥40dB@8700MHz ; ≥40dB@11350MHz

Dimension (mm)：7.6*4.2*1.1
